Enterprise-Class 10G Fiber Core Aggregation Platform

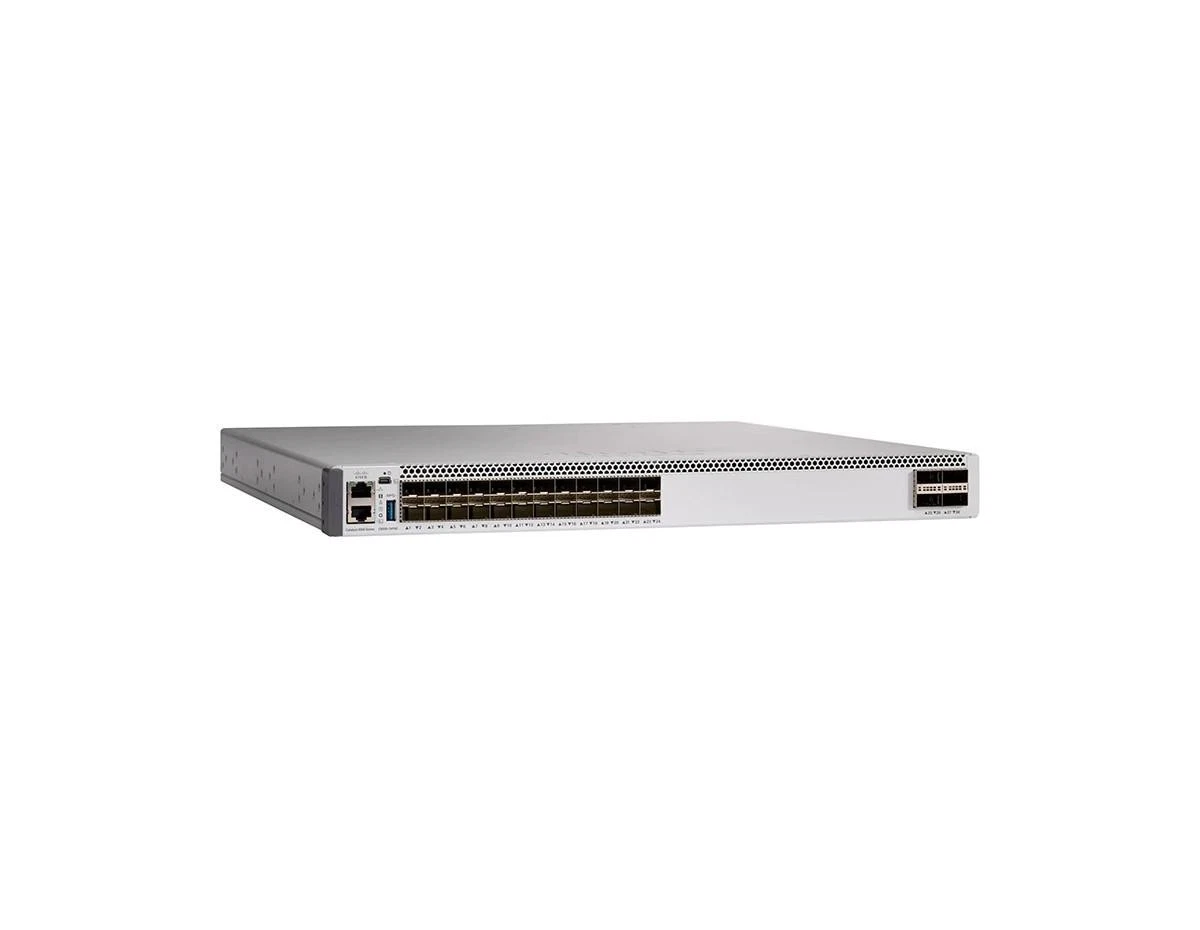

The Cisco Catalyst C9500-24X-E Switch is a lead member of the premier Catalyst 9500 Series, the industry’s first purpose-built 10, 40, and 100 Gigabit Ethernet switch family targeted for the enterprise campus core. Powered by the advanced Cisco Unified Access Data Plane (UADP) ASIC architecture, this high-performance core switch delivers incredible packet-processing capacity, ironclad security, and structural network resiliency.
High-Density 10G SFP+ Downlinks and Adaptable Core Links
Eliminate traditional network bottlenecks across your campus plant. This enterprise aggregation platform provides 24 dedicated 1G/10G SFP+ fiber ports, allowing cost-effective migration paths to next-generation high-speed server racks, storage area networks (SAN), and downstream access layers. It guarantees massive, non-blocking backplane pipelines directly to your distribution infrastructure.
Eliminate traditional network bottlenecks across your campus plant. This enterprise aggregation platform provides 24 dedicated 1G/10G SFP+ fiber ports, allowing cost-effective migration paths to next-generation high-speed server racks, storage area networks (SAN), and downstream access layers. It guarantees massive, non-blocking backplane pipelines directly to your distribution infrastructure.
Advanced Layer 3 Routing and Network Essentials Intelligence
Deploy a secure foundation for your intent-based corporate network. Managed under the included Network Essentials software tier, this switch brings full Layer 3 capabilities right to your network core, including advanced static routing, OSPF, BGP, and policy-based segmentation. It supports full network visualization via Flexible NetFlow and features hardware-anchored secure boot protections to defend against active firmware exploits.
Deploy a secure foundation for your intent-based corporate network. Managed under the included Network Essentials software tier, this switch brings full Layer 3 capabilities right to your network core, including advanced static routing, OSPF, BGP, and policy-based segmentation. It supports full network visualization via Flexible NetFlow and features hardware-anchored secure boot protections to defend against active firmware exploits.
Technical Specifications:
Product Model: Cisco Catalyst C9500-24X-E
Downlink Port Array: 24x 1/10 Gbps SFP+ Fiber Slots
Uplink Modules: Optional network modules available (supports modular 40G/100G QSFP28 expansions)
PoE Support: Non-PoE Model (Optimized for core data aggregation)
Switching Capacity: Up to 480 Gbps (Standalone backplane capacity)
Forwarding Rate: Up to 360 Mpps (Millions of packets per second)
Resiliency: 1+1 Platinum-rated redundant hot-swappable AC power supplies
Software License Tier: Network Essentials (Permanent Base Software Feature Set)
Form Factor: 1U Rackmount (Standard 19-inch mounting hardware included)
Product Model: Cisco Catalyst C9500-24X-E
Downlink Port Array: 24x 1/10 Gbps SFP+ Fiber Slots
Uplink Modules: Optional network modules available (supports modular 40G/100G QSFP28 expansions)
PoE Support: Non-PoE Model (Optimized for core data aggregation)
Switching Capacity: Up to 480 Gbps (Standalone backplane capacity)
Forwarding Rate: Up to 360 Mpps (Millions of packets per second)
Resiliency: 1+1 Platinum-rated redundant hot-swappable AC power supplies
Software License Tier: Network Essentials (Permanent Base Software Feature Set)
Form Factor: 1U Rackmount (Standard 19-inch mounting hardware included)
